Draggable Rect#

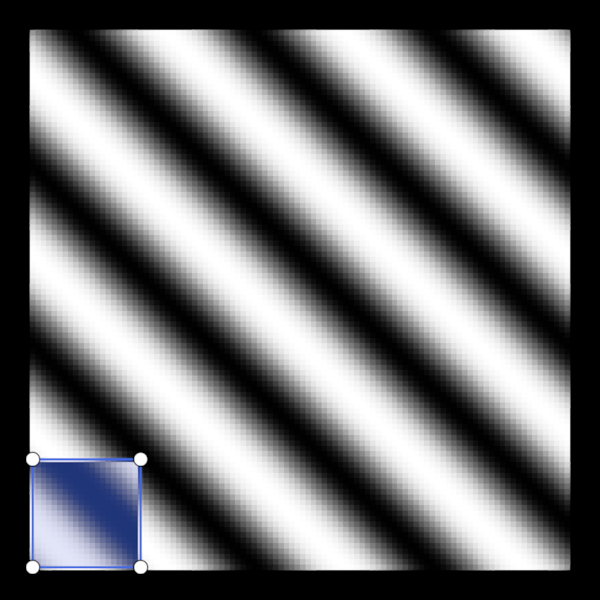

Draggable rectangle with corner handles overlaid on a grayscale image.
Pixels contained within the rectangle are inverted in the background image. Note that, for a pixel to be considered "contained" its center must be contained.
This example demonstrates: - Composing a rectangle from three nodes: a semi-transparent mesh (fill), a solid line (outline), and disc point markers (handles). - Using an event filter to implement click-and-drag interactions. - Changing cursor shapes to signal behaviors.
import cmap
import numpy as np
import scenex as snx
from scenex.app import CursorType
from scenex.app.events import (
Event,
MouseButton,
MouseLeaveEvent,
MouseMoveEvent,
MousePressEvent,
MouseReleaseEvent,
)
# -- Background image -- #
IMG_W, IMG_H = 100, 100
xx, yy = np.meshgrid(np.linspace(0, 6 * np.pi, IMG_W), np.linspace(0, 6 * np.pi, IMG_H))
img_data = ((np.sin(xx + yy) * 0.5 + 0.5) * 255).astype(np.uint8)
bg = snx.Image(
data=img_data,
cmap=cmap.Colormap("grays"),
clims=(0, 255),
order=0,
)
# -- Rectangle nodes -- #
RECT_VERTICES = np.array([[0, 0, 0], [20, 0, 0], [20, 20, 0], [0, 20, 0]], dtype=float)
rect_mesh = snx.Mesh(
vertices=RECT_VERTICES,
faces=np.array([[0, 1, 2], [0, 2, 3]]),
color=snx.UniformColor(color=cmap.Color("royalblue")),
opacity=0.25,
order=1,
)
rect_line = snx.Line(
parent=rect_mesh,
vertices=RECT_VERTICES[[0, 1, 2, 3, 0]],
color=snx.UniformColor(color=cmap.Color("royalblue")),
width=2.0,
order=2,
)
handles = snx.Points(
parent=rect_mesh,
vertices=RECT_VERTICES,
size=14,
face_color=snx.UniformColor(color=cmap.Color("white")),
symbol="disc",
scaling="fixed",
order=3,
)
# ── Scene / View ──────────────────────────────────────────────────────────────
scene = snx.Scene(children=[bg, rect_mesh])
view = snx.View(
scene=scene,
camera=snx.Camera(controller=snx.PanZoom(), interactive=True),
)
canvas = snx.show(view)
# ── Drag state ────────────────────────────────────────────────────────────────
_anchor: tuple[float, float] | None = None # resize: fixed opposite corner
_drag_start: np.ndarray | None = None # translate: cursor pos last frame
def _cursor_for_pos(wx: float, wy: float) -> CursorType:
# Even corners (BL=0, TR=2) are on the main diagonal
# Odd corners (BR=1, TL=3) on the anti-diagonal.
return (
CursorType.BDIAG_ARROW
if _nearest_corner(wx, wy) % 2 == 0
else CursorType.FDIAG_ARROW
)
# ── Helpers ───────────────────────────────────────────────────────────────────
def _vertices_from_corners(x0: float, y0: float, x1: float, y1: float) -> np.ndarray:
"""Takes any two opposite corners of a rectangle and returns all four vertices.
These vertices are returned in counter-clockwise order as
bottom-left, bottom-right, top-right, top-left.
"""
mi = (min(x0, x1), min(y0, y1))
ma = (max(x0, x1), max(y0, y1))
return np.asarray(
[
(mi[0], mi[1], 0),
(ma[0], mi[1], 0),
(ma[0], ma[1], 0),
(mi[0], ma[1], 0),
]
)
def _nearest_corner(wx: float, wy: float) -> int:
"""Index of the corner handle nearest to world position (wx, wy)."""
world = rect_mesh.transform.map(rect_mesh.vertices)[:, :2]
return int(np.argmin(np.linalg.norm(world - [wx, wy], axis=1)))
# ── Event filter ──────────────────────────────────────────────────────────────
def _event_filter(event: Event) -> bool:
global _anchor, _drag_start
if isinstance(event, MouseMoveEvent):
if not (ray := view.to_ray(event.pos)):
return False
pos = np.array(ray.origin[:2])
# -- Dragging a handle -- #
if _anchor is not None:
# Determine the new rectangle bounding box from the anchor point and the
# mouse position
new_vertices = _vertices_from_corners(pos[0], pos[1], *_anchor)
# Update the nodes
rect_mesh.vertices = new_vertices
rect_line.vertices = new_vertices[[0, 1, 2, 3, 0]]
handles.vertices = new_vertices
# Reset the cursor in case we are "flipping" the rectangle
# by dragging a corner past an edge it is not connected to.
snx.set_cursor(canvas, _cursor_for_pos(*pos))
return True
# -- Dragging the whole rectangle -- #
if _drag_start is not None:
# Determine the offset since the last mouse event
delta = pos - _drag_start
# Offset two vertices to get the new rectangle bounding box
# NOTE we just need two opposite corners, doesn't matter which two.
v0 = rect_mesh.vertices[0, :2] + delta
v2 = rect_mesh.vertices[2, :2] + delta
new_vertices = _vertices_from_corners(*v0, *v2)
# Update the nodes
rect_mesh.vertices = new_vertices
rect_line.vertices = new_vertices[[0, 1, 2, 3, 0]]
handles.vertices = new_vertices
# Record the new position for a future drag
_drag_start = pos
return True
# -- Hover -- #
if ray.intersections(handles):
snx.set_cursor(canvas, _cursor_for_pos(*pos))
elif ray.intersections(rect_mesh):
snx.set_cursor(canvas, CursorType.ALL_ARROW)
else:
snx.set_cursor(canvas, CursorType.DEFAULT)
elif isinstance(event, MousePressEvent):
if event.buttons & MouseButton.LEFT:
if not (ray := view.to_ray(event.pos)):
return False
pos = np.array(ray.origin[:2])
# -- Start a handle drag -- #
if ray.intersections(handles):
# Find the clicked point
clicked = _nearest_corner(*pos)
# And record the other point
opp = (clicked + 2) % 4
_anchor = rect_mesh.vertices[opp, :2]
return True
# -- Start a rectangle drag -- #
if ray.intersections(rect_mesh):
_drag_start = pos
return True
elif isinstance(event, MouseReleaseEvent):
# -- End a drag -- #
_anchor = None
_drag_start = None
return True
elif isinstance(event, MouseLeaveEvent):
# -- End a drag -- #
_anchor = None
_drag_start = None
snx.set_cursor(canvas, CursorType.DEFAULT)
return False
def _on_vertices_changed(vertices: np.ndarray) -> None:
# Offset by 0.5 because pixels are at integers, not half-integers.
xs = vertices[:, 0]
ys = vertices[:, 1]
x0 = int(np.clip(np.ceil(xs.min()), 0, IMG_W))
x1 = int(np.clip(np.ceil(xs.max()), 0, IMG_W))
y0 = int(np.clip(np.ceil(ys.min()), 0, IMG_H))
y1 = int(np.clip(np.ceil(ys.max()), 0, IMG_H))
display = img_data.copy()
display[y0:y1, x0:x1] = 255 - img_data[y0:y1, x0:x1]
bg.data = display
# Connect the event filter to listen for user events
view.set_event_filter(_event_filter)
# Connect the vertex change callback
_on_vertices_changed(rect_mesh.vertices) # initialize display
rect_mesh.events.vertices.connect(_on_vertices_changed)
# Run!
snx.run()
